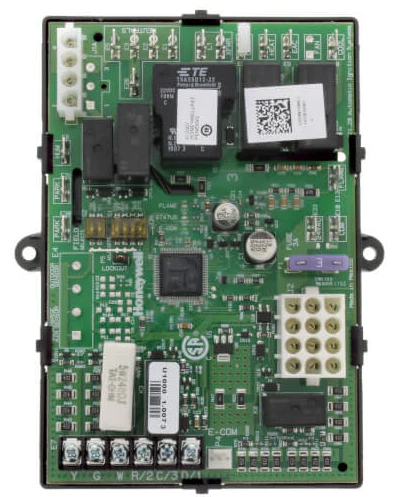

Universal Integrated Furnace Control
Universal Integrated Furnace Control, Volts:120, Hertz:60, Phase:1, Low Voltage:24V, Hertz:60, Phase:1, Current Draw:0.5 Amps Input Current At 24 Vac, Plus Valve Load At 24 Vac Plus Cooling Contractor, Thermostat Anticipator Setting: (Stage 1 Only) 100 Ma, Presurge:30 Seconds, HSI Warm Up:17/27 Or 30/30Seconds (1st/Next Trial)Depending On Dip Switch S2 Setting, Post Surge: 15 Seconds, Inter-Trial Purge:60 Seconds, Auto Restart Delay:60 Minutes (After Soft Lockout), Ignition Trials:3;2 Retries If Flame Is Not Sensed On The First Trial, Dims:1 1/2"H X 4 1/4"W X 4 1/4"D, Weight:1 Lb 6Oz, In Mfg Box, Made In USA.
$24.50
Original: $70.00
-65%Universal Integrated Furnace Control—
$70.00
$24.50
Description
Universal Integrated Furnace Control, Volts:120, Hertz:60, Phase:1, Low Voltage:24V, Hertz:60, Phase:1, Current Draw:0.5 Amps Input Current At 24 Vac, Plus Valve Load At 24 Vac Plus Cooling Contractor, Thermostat Anticipator Setting: (Stage 1 Only) 100 Ma, Presurge:30 Seconds, HSI Warm Up:17/27 Or 30/30Seconds (1st/Next Trial)Depending On Dip Switch S2 Setting, Post Surge: 15 Seconds, Inter-Trial Purge:60 Seconds, Auto Restart Delay:60 Minutes (After Soft Lockout), Ignition Trials:3;2 Retries If Flame Is Not Sensed On The First Trial, Dims:1 1/2"H X 4 1/4"W X 4 1/4"D, Weight:1 Lb 6Oz, In Mfg Box, Made In USA.
